Accumulator Bracket

An accumulator bracket is a mechanical device used to fix and support a hydraulic accumulator.

PREV：No previous product NEXT：Accumulator Hoop

Key Functions and Features:
1. Stable Support: Its primary function is to securely fix the accumulator to the equipment frame or base, preventing displacement due to vibration or pressure changes during operation.
2. Structural Components: It typically includes a base (for connection to the equipment), a vertical or horizontal clamping structure (for supporting the accumulator body), and fixing devices (such as bolts and clamps).
3. Vibration Damping and Sealing: Some bracket designs are equipped with rubber pads or springs to reduce vibration transmission, or use leak-proof seals.

Ordering Note
1. Specify the model code full name when ordering, for example: Nominal volume of the accumulator 25L, Diameter $299 bracket:
NX-TJ/$299(rubber gasket include)
2. Contact us if a special requirement is needed.
3. Design change rights are retained by our company, and revisions are effective without further notice.

Product
Description

We can design and develop according to the needs of our customers to meet the requirements of different clients.

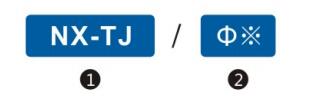

Model Designations

1. Code Name: Bracket for accumulator

2. Diameter: Φ89~Φ299

Product Specifications

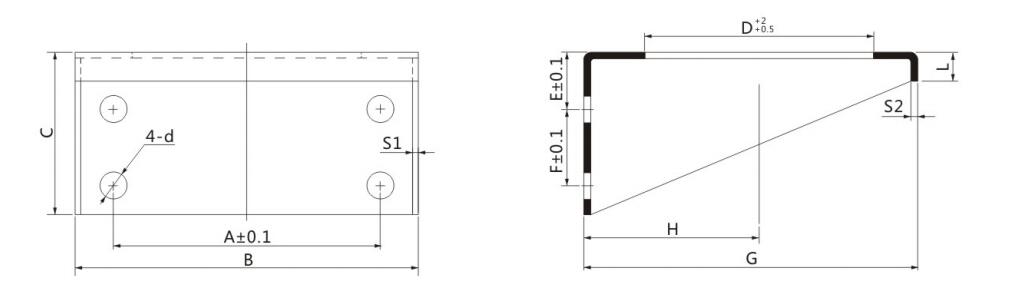

Overall Dimension

Model	A	B	C	D	E	F	G	S1	S2	d(±0.22)	L	H	Compound accumulator type
NX-TJ/Φ152	140	180	85	120	30	40	175	2.5	3	14	15	90	L1.6-L6.3
NX-TJ/Φ219	180	250	95	170	35	45	250	2.5	3	14	15	130	L10-L40
NX-TJ/Φ299	260	330	220	212	65	120	330	3	4.5	22	25	165	L20-L150
NX-TJ/Φ229	200	260	100	170	35	40	225	2.5	3	14	-	122	-

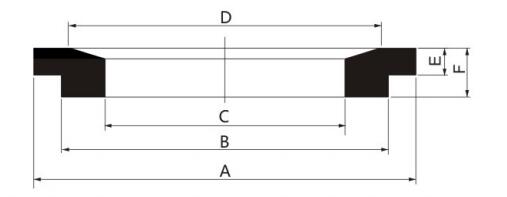

Model	A	B	C	D	E	F	Matching Bracket Model
NX-DQ/Φ152	140	120	88	115	10	18	NX-TJ/Φ152
NX-DQ/Φ219	195	170	158	170	15	25	NX-TJ/Φ219
NX-DQ/Φ299	250	210	195	210	20	30	NX-TJ/Φ299
NX-DQ/Φ229	200	169	159	170	15	20	NX-TJ/Φ229
