READ MOREHydraulic valves are among the most critical actuators in hydraulic systems. Their primary function is to control the direction, flow rate, pressure, and speed of hydraulic oil, thereby achieving precise control of mechanical motion.
Simply put, hydraulic valves are like the "brain" and "traffic lights" of a hydraulic system, determining where the hydraulic oil flows, how fast it flows, whether it is blocked, and at what pressure it can pass.
Based on their main functions, hydraulic valves are generally classified as follows:
**Direction Valve:** Function: Changes the direction of hydraulic oil flow, thereby controlling the extension, contraction, or rotation of actuators (such as cylinders or motors).
Characteristics: The most common type of hydraulic valve, typically used in conjunction with an oil tank, pump, and actuator.
**Pressure Valve:** Function: Controls the working pressure within the hydraulic system, preventing excessive system pressure from damaging components.
Characteristics: Usually operates passively, utilizing pressure differences within the system to achieve its function (e.g., safety valves, relief valves).
**Flow Valve:** Function: Regulates the flow rate of hydraulic oil, thereby controlling the speed of actuators. Features: **Hydraulic Valve:** Flow rate is adjusted by changing the resistance of the hydraulic circuit; a common example is the throttle valve.
Proportional Valve:
Function: Adjusts the flow rate or pressure of hydraulic oil proportionally to changes in the input electrical signal, achieving stepless control.
Features: High precision, fast response speed; commonly used in high-precision mechanical equipment.
Servo Valve:
Function: Used in conjunction with a servo motor to achieve higher precision and faster response speed control.
Features: Typically used in high-precision CNC machine tools and aerospace applications.
Structural Features of Hydraulic Valves:
Hydraulic valves typically consist of a valve body, valve core, valve seat, spring (or elastic element), etc. The movement of the valve core opens or closes the hydraulic circuit, thereby controlling the on/off state or direction of oil flow.
A 1.5 L threaded diaphragm accumulator screwed straight into a manifold block is one of the tidiest ways to hold clamping pressure on a machine tool. Charge it...
READ MOREA 0.32 L diaphragm accumulator leaves the factory charged to 60 bar. Six months later, on a machine whose oil runs at 45 °C, that same unit may read close to 6...
READ MOREA 315 bar clamping circuit on a die-casting machine has to hold force for about two seconds after the pump stops. A one litre diaphragm accumulator covers that...
READ MOREPicture a 3 MW turbine on a cold February night. The hydraulic power unit trips, the pump stops, and the pitch system has seconds to feather three blades. The ...
READ MORENingbo Fenghua Jiangkou Jingyi Hydraulic Co., Ltd. (FHJINGYI) will exhibit at PTC ASIA 2026 and bauma CHINA 2026 in Shanghai this November. We warmly invite yo...

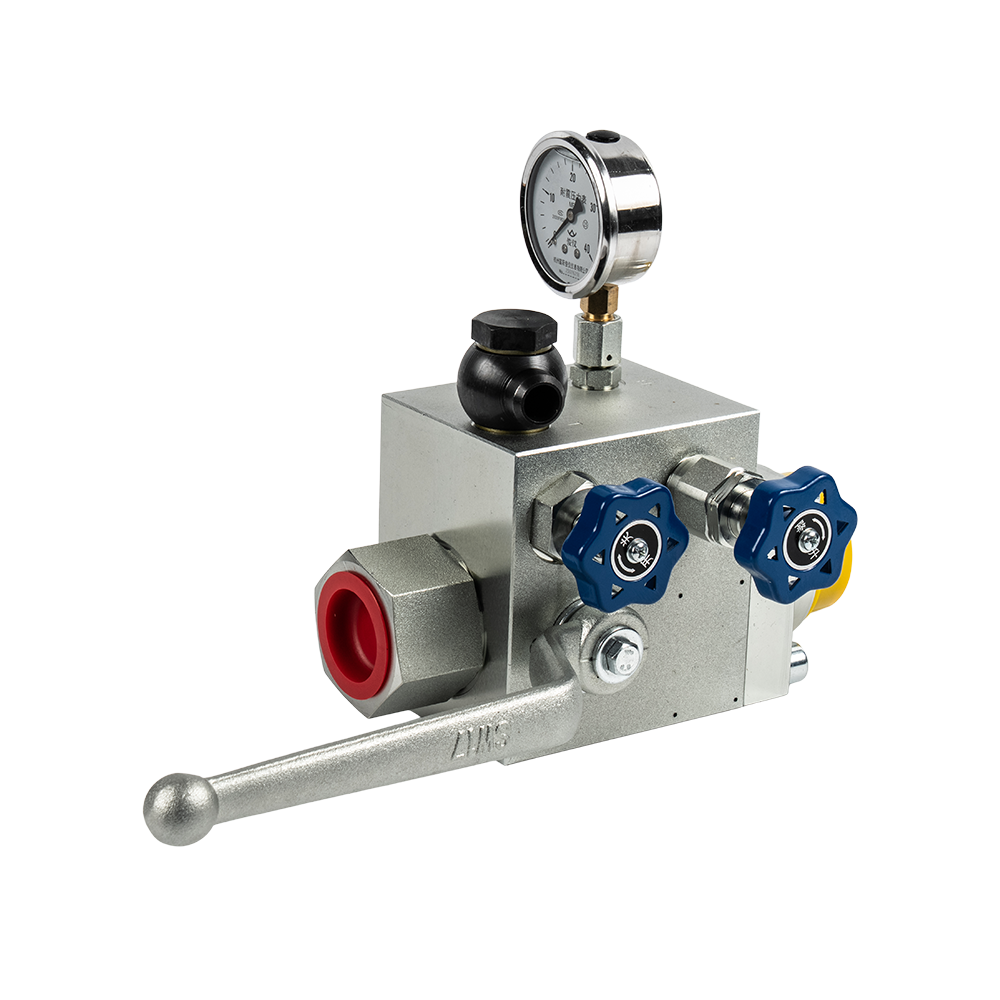

READ MOREHydraulic Valves are the control elements that direct, regulate, and limit the flow of pressurized fluid within a hydraulic circuit. By opening, closing, or partially restricting flow paths, they determine how much pressure and flow reaches each actuator, allowing a system to start, stop, accelerate, or hold a load with precision. In demanding industrial environments, High Pressure Valves take on an even greater role, since they must maintain sealing integrity and accurate control even when system pressure spikes well above normal operating levels.
Valves are generally grouped into three functional categories: directional control, pressure control, and flow control, and most hydraulic systems use a combination of all three to achieve the desired motion and force.
Inside a hydraulic valve, a spool, poppet, or ball moves within a precisely machined body to open or block internal flow passages. Directional control valves use a sliding spool to route fluid to different ports, while pressure control valves use a spring-loaded element that shifts position once a pressure threshold is reached, venting excess fluid to protect the system. Flow control valves restrict the cross-sectional area of the flow path to set actuator speed independent of load changes.
As system pressure rises, even a small internal clearance can lead to excessive leakage, heat generation, or seal failure. Valves rated for high-pressure service are typically machined to tolerances within a few micrometers and use hardened steel components to resist wear from repeated high-cycle operation. A valve rated for 350 bar that is mistakenly installed in a 420 bar circuit, for example, can fail well before its expected service life, so matching the valve's pressure rating to the actual system pressure is critical.
| Valve Type | Primary Function | Common Application |
|---|---|---|
| Directional valve | Routes flow to control actuator direction | Cylinder extension and retraction |
| Relief valve | Protects system from overpressure | Pump circuit protection |
| Flow control valve | Meters flow rate to set speed | Speed regulation of actuators |
Choosing the right Hydraulic Valves depends on matching the rated pressure, flow capacity, port size, and response time to the actual circuit requirements. For systems operating continuously at high pressure, material certification and quality control during manufacturing become just as important as the valve's published specifications.
Ningbo Fenghua Jiangkou Jingyi Hydraulic Co., Ltd., founded in 2012 and located in Xikou Town, Fenghua District, Ningbo City, Zhejiang Province, is a national high-tech enterprise specializing in hydraulic and pneumatic components, with core products covering accumulators, hydraulic parts, and pneumatic components. The company holds the Special Equipment Manufacturing License (Grade A2 for Pressure Vessels) issued by the Zhejiang Administration for Market Regulation and has obtained EU CE certification, with a production system that strictly follows national quality assurance standards from raw materials through to finished products, supporting reliable performance for international customers.
A directional valve determines which way fluid flows to control actuator motion, while a flow control valve regulates how fast fluid moves to set actuator speed.
If the system's maximum operating pressure approaches or exceeds 315 bar, standard valves may not provide sufficient safety margin, making high-pressure rated valves the safer choice.
Common causes include contaminated fluid, exceeding the valve's pressure rating, incompatible seal materials, and insufficient filtration upstream of the valve.
Routine inspection every 6 to 12 months is generally recommended, with more frequent checks for valves in continuous high-cycle or high-pressure service.
